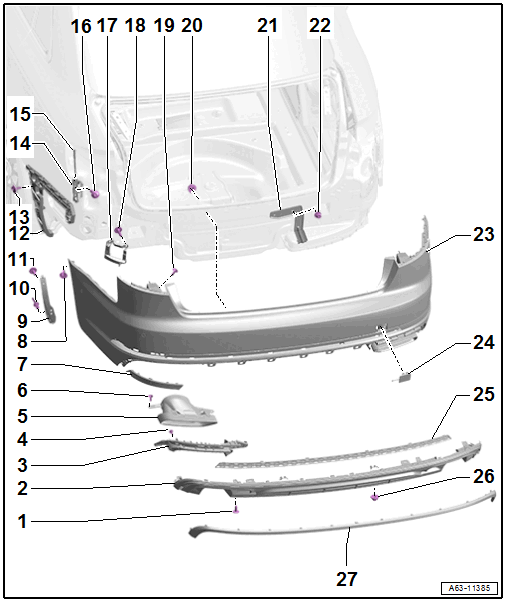

Overview - Bumper Cover, A4 Before Product Improvement From My 2019
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There is a risk of explosions and fatal injuries due to damaged natural gas tanks.
- The natural gas tank must be checked for damage if components in the rear side or rear area are removed due to damage, such as the bumper cover, rear lid, underbody trim panels, longitudinal members, rear lid end piece, etc.
- Check for damage on fuel tanks. Refer to the appropriate Service Information .
- Bolt
- 2 Nm
- Quantity: 2
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019, A5 FROM PRODUCT IMPROVEMENT .
- Mount
- For tail pipe trim
- Removing and Installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019 .
- Bolt
- 2 Nm
- Quantity: 4
- Tail Pipe Trim
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019 .
- Bolt
- 2 Nm
- Quantity: 2
- Rear Reflector
- With spring
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 BEFORE PRODUCT IMPROVEMENT .
- Bolt
- 2 Nm
- Intermediate Piece
- For securing the wheel housing liner
- Expanding Rivet
- Quantity: 2
- Bolt
- 2 Nm
- Mount
- For the bumper cover
- Side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 3
- Mount
- For securing the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Locking Mechanism
- For attaching the rear bumper cover to the upper mount
- Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
- Quantity: 2
- Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Quantity: 3
- Bolt
- 2 Nm
- Nut
- 4 Nm
- Quantity: 4
- Mount
- For the bumper cover
- Center
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- 3.5 Nm
- Quantity: 2
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cover
- For the towing eye
- Trim
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, A4 S LINE BEFORE PRODUCT IMPROVEMENT .
- Nut
- 3.5 Nm
- Quantity: 2
- Trim Molding
- Equipment versions S-line
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019 .
