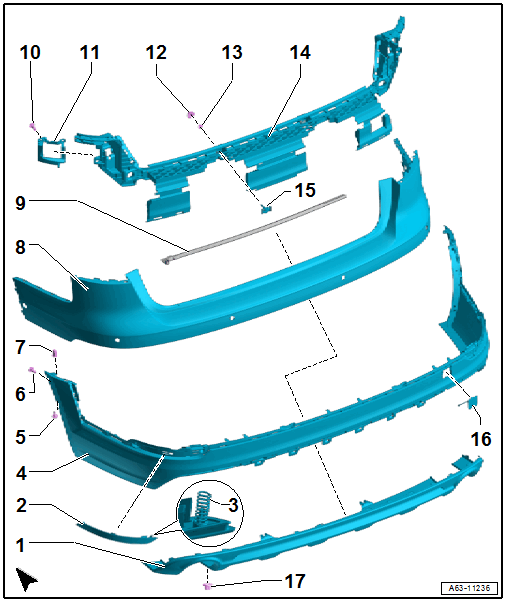

Overview - Bumper Cover, A4 ALLROAD, Before Product Improvement
WARNING: This page is about a different variant/trim than selected.
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Rear Reflector
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 ALLROAD BEFORE PRODUCT IMPROVEMENT .
- Spring
- For rear reflector
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - REAR WHEEL HOUSING LINER
- Quantity: 3
- Expanding Nut
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Overview - Bumper Cover Mount. Refer to OVERVIEW - BUMPER COVER MOUNT
- Securing Strip
- Bolt
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Quantity: 3
- Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Nut
- 4 Nm
- Quantity: 4
- Sealing Washer
- End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Securing Plate
- Cover
- For the towing eye
- Nut
- 2 Nm
- Quantity: 2
