Overview - Bumper Cover, A4 ALLROAD From Product Improvement

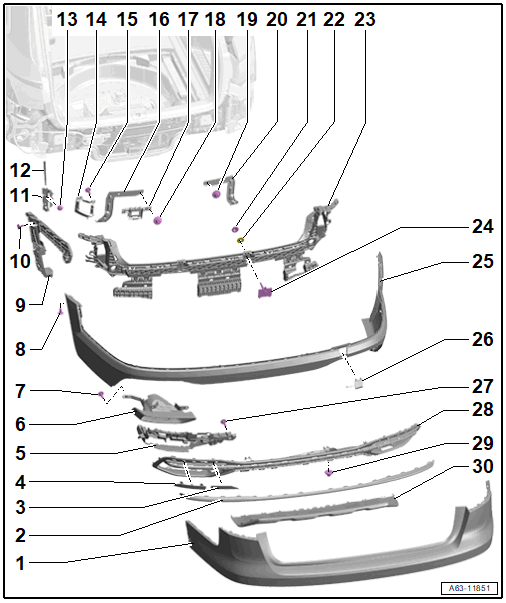

Fig 1: Exploded View Of Rear Bumper Cover (A4 Allroad From Product Improvement)

Courtesy of AUDI OF AMERICA, LLC

1. Bumper Cover Upper Section
   • Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
   • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
2. Trim Molding
   • Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A4 LINES, A5 LINES AND A4 ALLROAD FROM PRODUCT IMPROVEMENT .
3. Small Reflector
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
   • Screw tightening specification: 2 Nm
4. Large Reflector
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
   • Screw tightening specification: 2 Nm
5. Mount
   • For tail pipe trim
   • Removing and Installing. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .
6. Tail Pipe Trim
   • Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
7. Bolt
   • 2 Nm
   • Quantity: 4
8. Bolt
   • 2 Nm
9. Mount
   • For the bumper cover
   • Side
   • Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
10. Bolt
    • Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
    • Quantity: 3
11. Mount
    • For securing the bumper cover
    • Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
12. Locking Mechanism
    • For attaching the rear bumper cover to the upper mount
13. Bolt
    • Tightening specification. Refer to OVERVIEW - BUMPER COVER MOUNT
14. Mount
    • For lane change assistance control module
    • Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
15. Bolt
    • Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
    • Quantity: 3
16. Mount
    • Left
    • For the bumper cover
    • Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
17. Bracket
    • For the Garage Door Opener Control Module -J530-
18. Nut
    • 3.5 Nm
    • Quantity: 2
19. Nut
    • 3.5 Nm
    • Quantity: 2
20. Mount
    • Right
    • For the bumper cover
    • Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
21. Nut
    • 4 Nm
    • Quantity: 4
22. Sealing Washer
23. End Panel
    • Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
24. Threaded Pin
    • Quantity: 4
25. Bumper Cover Lower Section
    • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A4 ALLROAD FROM PRODUCT IMPROVEMENT .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
26. Cover
    • For the towing eye
27. Bolt
    • 2 Nm
    • Quantity: 4
28. Bumper Cover Lower Section
    • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A4 ALLROAD FROM PRODUCT IMPROVEMENT .
29. Nut
    • 2 Nm
    • Quantity: 2
30. Impact Guard
    • Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
