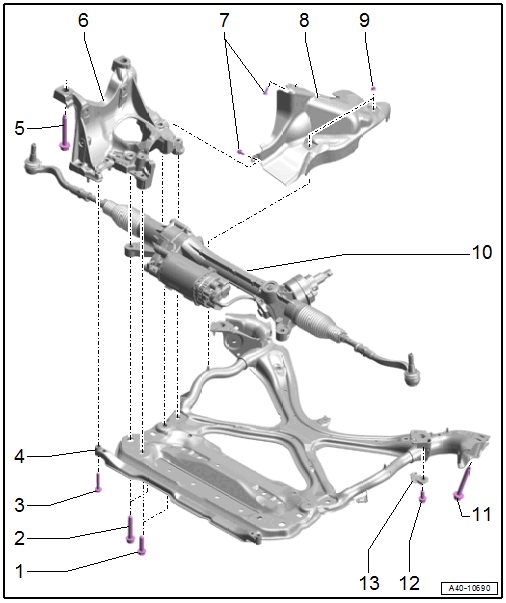

Overview - SUBFRAME: Subframe
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 90 Nm +90°
- Always replace after removing
- Fitting Bolt
- 90 Nm +90°
- Always replace after removing
- Bolt
- 30 Nm
- Subframe Crossbrace
- Removing and installing. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
- Bolt
- 115 Nm + 180°
- Loosen and tighten together with -Item ) Subframe => List Item: Bolt and -Item ) Subframe => List Item: Bolt diagonally in stages
- Always replace after removing
- Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and installing. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
- Bolts
- 9 Nm
- Shield
- Removing and installing. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
- Nut
- 9 Nm
- Steering Gear
- Overview. Refer to OVERVIEW - STEERING GEAR .
- Bolt
- 115 Nm + 180°
- Loosen and tighten together with -Item ) Subframe => List Item: Bolt and -Item ) Subframe => List Item: Bolt diagonally in stages
- Always replace after removing
- Bolt
- 50 Nm + 90°
- Loosen and tighten together with -Item ) Subframe => List Item: Bolt and -Item ) Subframe => List Item: Bolt diagonally in stages
- Always replace after removing
- Clip
