SUBFRAME Shield, Removing And Installing

Special tools and workshop equipment required

• Torque Wrench 1410: VAG1410

Left Subframe Shield, Removing

-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

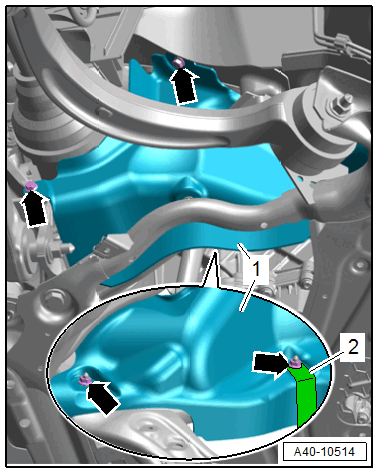

-- Remove the threaded connections -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, free up the bracket -2-.

-- Remove the shield -1-.

Right Subframe Shield, Removing

-- Equipment versions with gasoline engine: Remove the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Equipment versions with TDI engine: remove the right drive axle from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the subframe shield.

Installing

Install in reverse order of removal.

Tightening Specifications

• Refer to OVERVIEW - SUBFRAME
• Refer to OVERVIEW - DRIVE AXLE
• Refer to OVERVIEW - MUFFLER .
• Refer to OVERVIEW - NOISE INSULATION .
