Checking the side adjustment to the outer edge of the convertible top:
WARNING: This page is about a different variant/trim than selected.

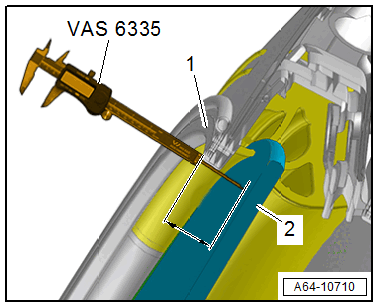

-- Measure the side window gap dimension -2- to the convertible top -1- using the : VAS6335 .
- Gap dimension -a-. Refer to ADJUSTMENT DIMENSIONS - Gap dimension -e- = 16.6 mm .
-- Adjust the side window if the side adjustment is not OK. Refer to SIDE ADJUSTMENT .
