Adjustment Dimensions
WARNING: This page is about a different variant/trim than selected.

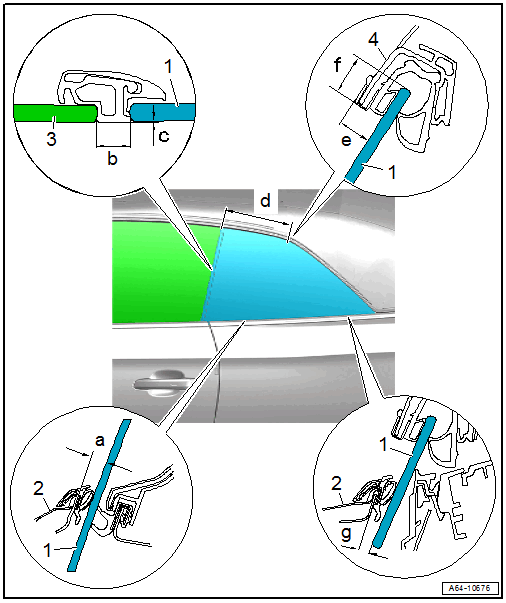

Side window to the front side panel
- Gap dimension -a- = 8.3 mm
-1- Side window
-2- Side panel
Side window to door window
- Gap dimension -b- = 10.2 + 1.0 mm
- Flush dimension -c- = ± 0.7 mm
- Parallel alignment = 0.9 mm.
-1- Side window
-3- Door window
Side window to the convertible top
- Gap dimension -d- = 125 mm
- Gap dimension -e- = 16.6 mm
- Gap dimension -f- = 8.8 mm
-1- Side window
-4- Convertible top cover
Side window to rear side panel
- Gap dimension -g- = 7.9 mm
-1- Side window
-2- Side panel
