Emblem, Removing
WARNING: This page is about a different variant/trim than selected.
- General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- If equipped, remove the peripheral camera mount. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
-- A4, A5, from product improvement: remove end panel. Refer to BACKING PLATE, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .

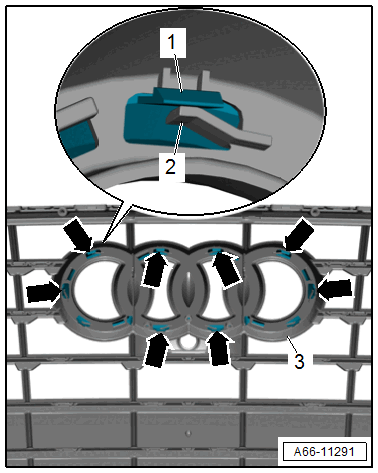

-- Release the tab -1- at the areas marked with -arrows- by lifting each securing tab -2-.
-- Remove the emblem from the radiator grille -3-.
Installing
Install in reverse order of removal and note the following:
-- Press on the emblem until it audibly engages.
