Left/Right Rear Interior Locking Switch -E273- / -E274-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the interior door mechanism decorative trim. Refer to OVERVIEW - REAR DOOR TRIM PANEL .

-- Release the retainers in direction of -arrows-.

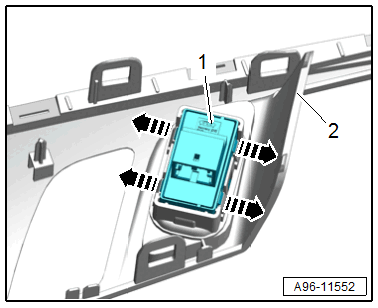

Fig 1: Driver Interior Locking Button -E308-
GWWA96-11552Courtesy of AUDI OF AMERICA, LLC

-- Remove the interior locking switch -1- from the mount -2-.
