Overview - Rear Door Trim Panel

WARNING: This page is about a different variant/trim than selected.

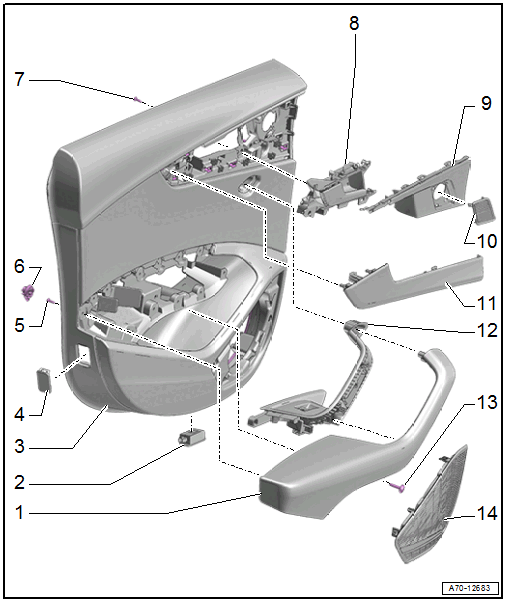

Fig 1: Exploded View Of Rear Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Pull Handle with Armrest
- Removing and Installing. Refer to REAR PULL HANDLE, REMOVING AND INSTALLING .
Rear Entry Lamp
- Driver Side Rear Entry Lamp -W83-
- Passenger Side Rear Entry Lamp -W84-
- Component Location Overview. Refer to OVERVIEW - REAR DOOR LAMPS .
Door Trim Panel
- Removing and Installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Exit Warning Lamp/Reflector
Bolt
- 1.2 Nm
- For pull handle with armrest
- Quantity: 15
Clip
- For door trim panel
- Insert in the trim panel
- Quantity: 7
Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 3
Interior Door Mechanism
- Removing and Installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Interior Door Mechanism Decorative Trim
- Removing and Installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Speaker Trim
- For the treble speaker
- Removing and Installing. Refer to SPEAKER TRIM IN DOOR TRIM PANELS, REMOVING AND INSTALLING .
- Press on until it engages audibly
Decorative Trim
- Removing and Installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Switch Mount
- Removing and Installing. Refer to REAR PULL HANDLE, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim panel
- Quantity: 3
Speaker Trim
- For the bass speaker
- Removing and Installing. Refer to SPEAKER TRIM IN DOOR TRIM PANELS, REMOVING AND INSTALLING .
- Engage in the door trim panel and press on it until it engages audibly
