BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493-: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the instrument cluster trim. Refer to OVERVIEW - INSTRUMENT PANEL .

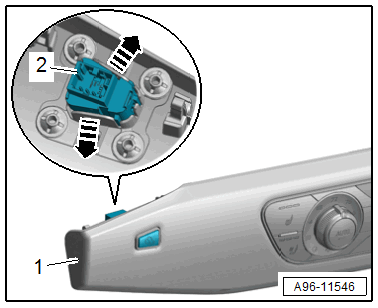

-- Release the retainers in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the button -2- from the mount -1-.
