Overview - Instrument Panel

WARNING: This page is about a different variant/trim than selected.

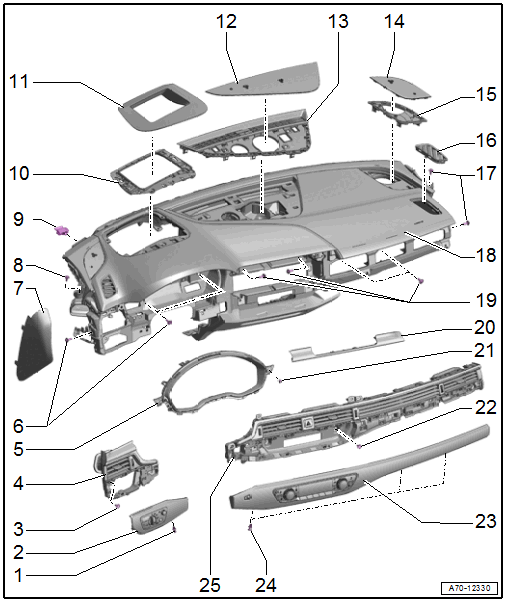

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

Screw/Expanding Clip
- 1.5 Nm
Light Switch Trim
- Removing and Installing. Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bolts
- 3 Nm
- Quantity: 2
Driver Side Instrument Panel Vent
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Press on until it engages audibly
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Bolts
- 3 Nm
- Quantity: 3
Instrument Panel Side Cover
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bolt
- 3 Nm
Rubber Buffer
- Insert into the instrument panel mount at the bottom of the windshield frame
- Quantity: 3
Windshield Projection Frame
- Removing and Installing. Refer to OVERVIEW - WINDSHIELD PROJECTION (HEAD-UP DISPLAY) .
- Equipped on some models
Windshield Projection Cover
- Removing and Installing. Refer to OVERVIEW - WINDSHIELD PROJECTION (HEAD-UP DISPLAY) .
- Equipped on some models
Center Speaker Trim
- Replace after removing.
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Front Center Defroster Vent
- Removing and Installing. Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING .
- Press on until it engages audibly
Outer Speaker Trim
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Speaker Mount
- Removing and Installing. Refer to SPEAKER MOUNT, REMOVING AND INSTALLING .
Side Defroster Vent
- Removing and Installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
- Press on it until it locks
Bolts
- 3 Nm
Instrument Panel
WARNING:
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolts
- 3 Nm
- Quantity: 4
MMI Screen Cover
- Removing and Installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bolt
- 3 Nm
- Quantity: 2
Bolt
- 3 Nm
- Quantity: 6
A/C Display Control Head Trim
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Screw/Expanding Clip
- 1.5 Nm
- Quantity: 3
Front Passenger Side Instrument Panel Vent
- Removing and Installing. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Press on until it engages audibly
