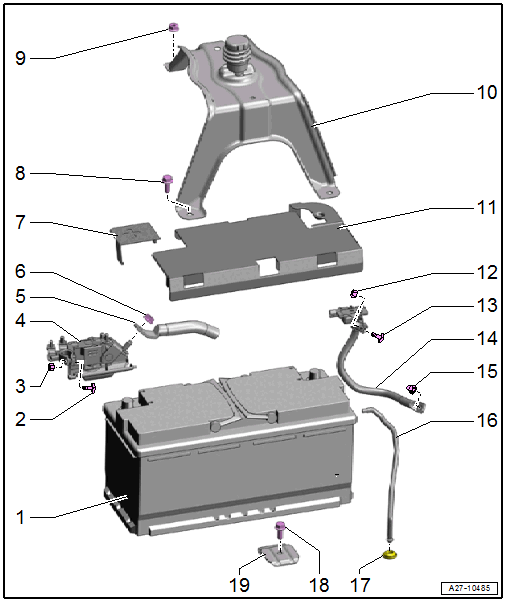

Overview - Battery -A-, In Luggage Compartment (0K0)
WARNING: This page is about a different variant/trim than selected.
- Battery -A-
- Checking. Refer to Battery, Checking .
- Removing and Installing. Refer to Battery -A-, REMOVING AND INSTALLING, BATTERY IN LUGGAGE COMPARTMENT, 0K0 .
- Bolt
- Nut
- 6 Nm
- Main Fuse Panel
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 .
- Positive Cable
- Nut
- 18 Nm
- Positive Terminal Cover
- Bolt
- 18 Nm
- Quantity: 2
- Nut
- 18 Nm
- Quantity: 2
- Retaining Bracket
- For the vehicle tool kit cover
- Battery Cover
- Nut
- 6 Nm
- Bolt
- Ground Wire
- With Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, 0K0, 0K4 AND VH2 .
- Nut
- 20 Nm
- Central Venting System Hose
- Grommet
- For the central venting system hose
- Bolt
- 18 Nm
- Retaining Bracket
