Cover And Cushion, Removing And Installing, Bench Seat, A5 Coupe/SPORTBACK: Notes

Special tools and workshop equipment required

• Pry Lever :80-200

Removing

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

Versions with Storage Tray:

-- Remove the storage tray. Refer to STORAGE TRAY, REMOVING AND INSTALLING .

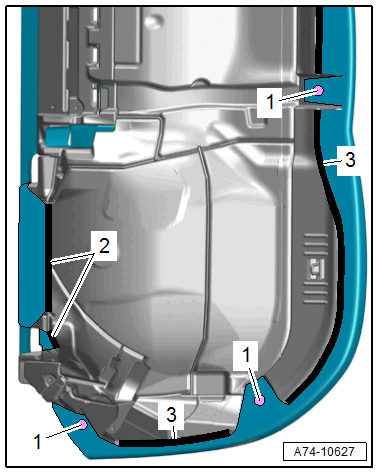

-- Remove the clips -2- using the :80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Pry the cover clamping strip -3- out from the molded part using a screwdriver along the seat frame.

-- Disengage the cover molding -1- from the center area of the seat frame.

Continuation for All Seat Versions:

Courtesy of AUDI OF AMERICA, LLC

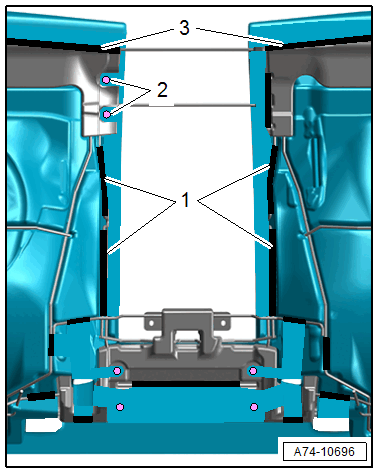

-- Remove the clips -1- using the :80-200  .

-- Pry the cover clamping strip -3- out from the molded part using a screwdriver along the seat frame.

-- Disengage the cover molding -2- from the seat frame at the rear.

-- Disengage the molding -1- from the seat frame.

Courtesy of AUDI OF AMERICA, LLC

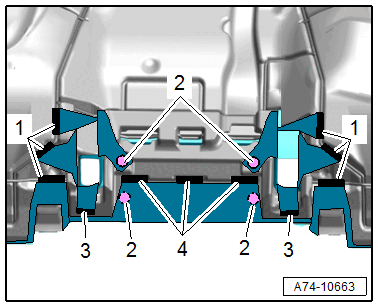

-- Pry the clamping strip -4- out of the molded part using a screwdriver.

-- Remove the clips -2- using the :80-200  .

-- Open the Velcro fasteners -3-.

-- Remove the cover and cushion from the seat frame.
