Storage Tray, Removing And Installing
WARNING: This page is about a different variant/trim than selected.

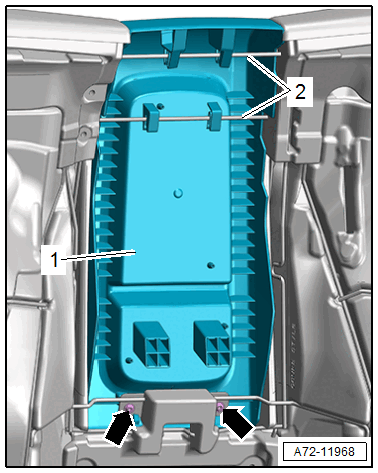

Removing, A5 Coupe/Sportback
-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.
-- Unclip and remove the storage tray -1- on the seat frame -2-.

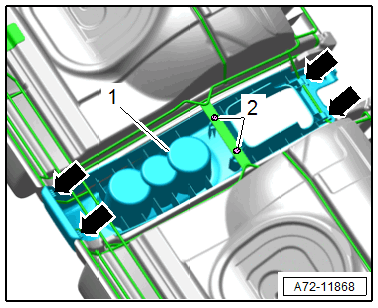

Removing, A5 Cabriolet
-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the bolts -2-.
-- Unclip the storage compartment -1- from the seat frame catches -arrows- and remove.
Installing
Further installation is the reverse order of removal.
