Overview - Backrest Cover And Cushion, Super Sport Seat

WARNING: This page is about a different variant/trim than selected.

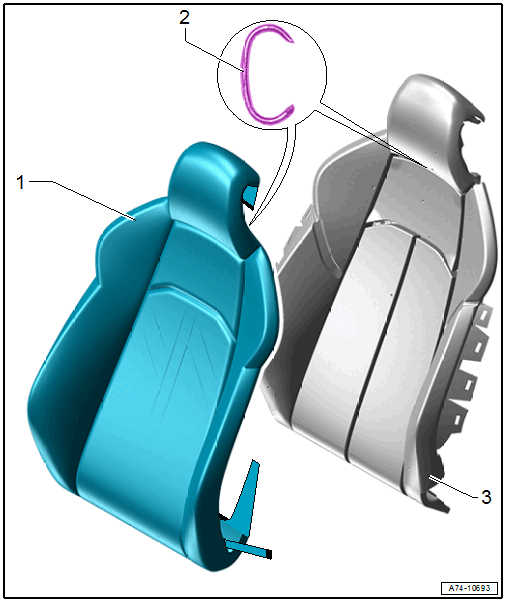

Fig 1: Exploded View Of Backrest Cover & Cushion, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Cover
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Upholstery Clip
- Replace after removing.
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
Cushion
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
