Overview - Backrest Cover And Cushion, Standard Seat/Sport Seat

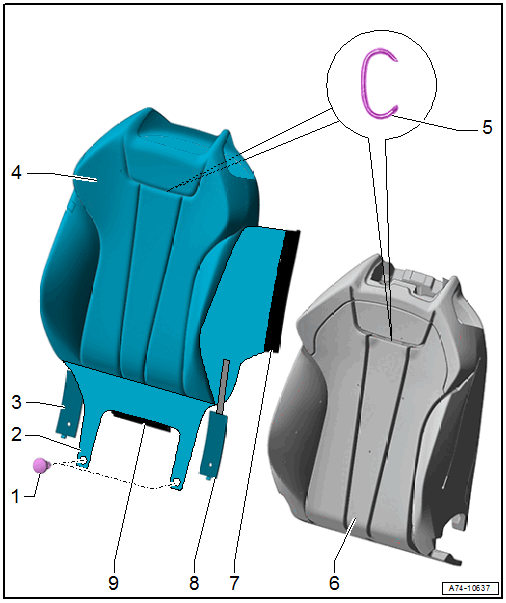

Fig 1: Exploded View Of Backrest Cover And Cushion, Standard Seat/Sport Seat

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • Quantity: 2
2. Cover Tab
   • Sewn into cover
   • To tension the cover secured to the backrest frame
3. Cover
   • For the backrest hinge
   • Sewn into cover
   • To attach to the backrest frame
4. Cover
   • Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
   • Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
   • Check that there are no folds after installing
5. Upholstery Clip
   • Replace after removing.
   • For securing the cover to the cushion
   • Install at the same location with Upholstery Clip Pliers :VAG1634  .
6. Cushion
   • Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
   • Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
   • Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
7. Molding
   • Sewn into cover
   • For attaching the cover to the backrest frame
   • Check for proper seating
8. Cover
   • For the backrest hinge
   • Sewn into cover
   • To attach to the backrest frame
9. Molding
   • Sewn into cover
   • For attaching the cover to the backrest frame
   • Check for proper seating
