Rear Seat Backrest Locking Mechanism, Removing And Installing, A5 Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Fold the rear seat backrest forward.
-- Open the convertible top.
-- Remove the locking mechanism trim. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .

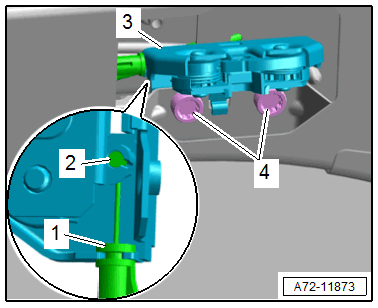

-- Remove the bolts -4-.
-- Remove the rear seat backrest locking mechanism -3-.
-- Unclip the release cable -1- from the locking mechanism and disengage the ends of the cable -2- from the lever.
