Locking Mechanism Trim, Removing And Installing, A5 Cabriolet
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Trim Removal Wedge :3409
Locking Mechanism Trim, Removing
-- Release the rear seat backrests.

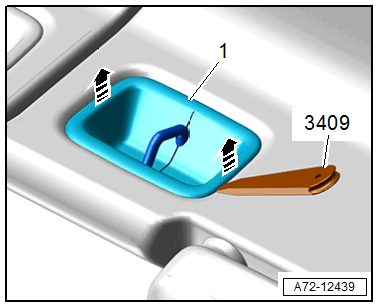

-- Unclip the locking mechanism trim -1- from the rear panel using the :3409 in direction of -arrows-.
Locking Bracket Trim, Removing
-- Unlock the rear seat backrest.

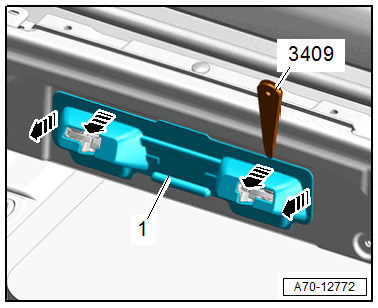

-- Unclip the locking bracket trim -1- from the backrest using the :3409 -arrows-.
Installing
Install in reverse order of removal.
