Overview - Locking Mechanism, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

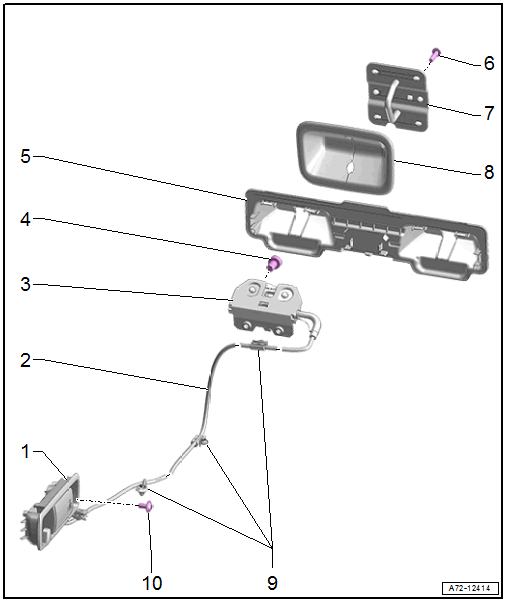

Fig 1: Exploded View Of Locking Mechanism, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

Remote Backrest Release
- For the rear seat backrest
- Only available together with -2 and 3-
- Removing and Installing. Refer to REMOTE BACKREST RELEASE WITH RELEASE CABLE, REMOVING AND INSTALLING, A5 CABRIOLET .
Release Cable
- For remote backrest release
- Only available together with -1 and 3-
- Removing and Installing. Refer to REMOTE BACKREST RELEASE WITH RELEASE CABLE, REMOVING AND INSTALLING, A5 CABRIOLET .
Locking Mechanism
- For the rear seat backrest
- Only available together with -1 and 2-
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .
Bolt
- 18.5 Nm
- Quantity: 2
Locking Mechanism Trim
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .
- Press on until it engages audibly
Bolt
- 4.5 Nm
- Quantity: 4
Locking Bracket
- For the rear seat backrest
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING BRACKET, REMOVING AND INSTALLING, A5 CABRIOLET .
Locking Bracket Trim
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .
- Press on until it engages audibly
Bracket
- For the release cable
- Clipped to the body
- Quantity: 3
Bolt
- 2.5 Nm
