Overview - Bench Seat/Single Seats, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

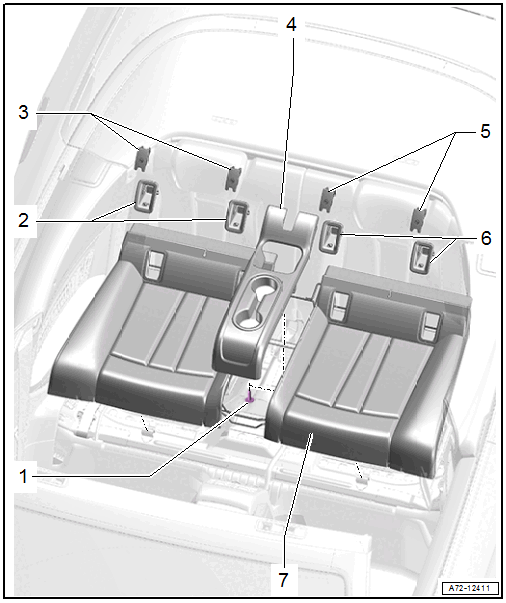

Fig 1: Exploded View Of Bench Seat/Single Seats, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.8 Nm
- Quantity: 2
Guides
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Must be secure in the anchor
Cap
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
Storage Tray
- Equipped on some models
- Removing and Installing. Refer to STORAGE TRAY, REMOVING AND INSTALLING .
Cap
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
Guides
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Must be secure in the anchor
Bench Seat
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- Shown with the storage tray
- The seat frame must engage correctly in the mounts
