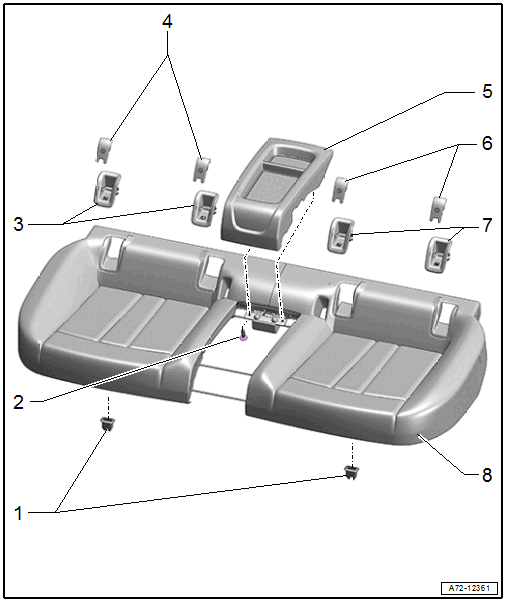

Overview - Bench Seat/Single Seats, 2-Person Rear Seat
WARNING: This page is about a different variant/trim than selected.
- Retainers
- Replace after every time the bench seat is removed
- For securing bench seat
- Clipped into the vehicle floor
- Bolt
- 2.8 Nm
- Quantity: 2
- Guides
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Must be secure in the anchor
- Cap
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Storage Tray
- Equipped on some models
- Removing and Installing. Refer to STORAGE TRAY, REMOVING AND INSTALLING .
- Cap
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Guides
- For the child seat anchor
- Removing and Installing. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Must be secure in the anchor
- Bench Seat
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- Shown with the storage tray
- The seat frame must engage correctly in the mounts
