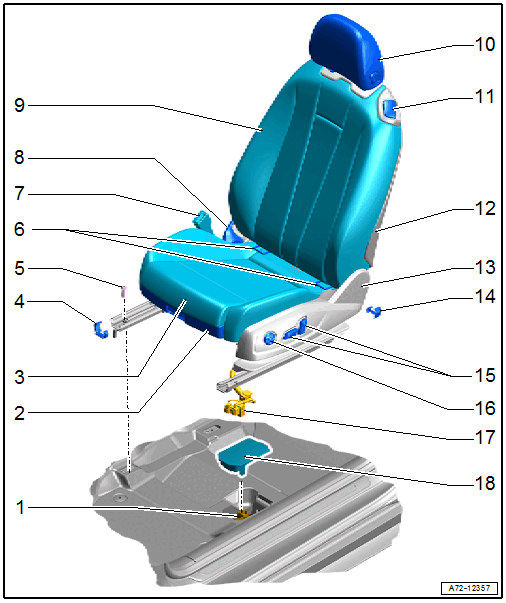

Overview - Front Seat
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Sport seat is shown.
- Connector Station
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Seat Trim in Front
- Overview. Refer to OVERVIEW - SEAT PAN, TRIM PANELS .
- Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
- Front Cover
- For the seat rail
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
- Bolt
- 50 Nm
- Front Seat, Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
- Quantity: 4
- Child Seat Anchor
- For the front passenger seat only
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- Front Seat Belt Latch
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
- Tunnel Side Seat Side Trim
- Overview. Refer to OVERVIEW - SEAT PAN, TRIM PANELS .
- Backrest
- Overview. Refer to OVERVIEW - FRONT BACKREST .
- Headrest
- Overview. Refer to OVERVIEW - HEADREST .
- Backrest Release/Entry Assistance
- Only A5 Coupe/Cabriolet
- Overview. Refer to OVERVIEW - BACKREST RELEASE AND ENTRY ASSISTANCE .
- Backrest Cover
- Overview. Refer to OVERVIEW - FRONT BACKREST .
- Seat Side Trim on Side Sill
- Overview. Refer to OVERVIEW - SEAT PAN, TRIM PANELS .
- Rear Cover
- For the seat rail
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
- Seat Adjustment Control Head
- Overview. Refer to OVERVIEW - SEAT PAN, POWER SEAT ADJUSTMENT ACTUATOR/SWITCH .
- Lumbar Support Adjustment Switch
- Overview. Refer to OVERVIEW - SEAT PAN, POWER SEAT ADJUSTMENT ACTUATOR/SWITCH .
- Connector
- With a corrugated tube for the modular wiring routing
- Modular Wiring Routing, Disconnecting and Connecting. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .
- Cover
- For the connector station
