Overview - Seat Pan, Trim Panels

WARNING: This page is about a different variant/trim than selected.

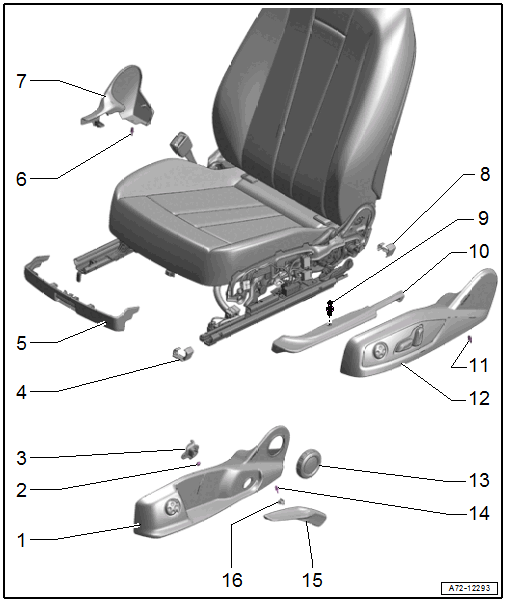

Fig 1: Exploded View Of Seat Pan, Trim Panels

Courtesy of AUDI OF AMERICA, LLC

Seat Side Trim on Side Sill
- For the manually adjustable seat
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
- Press on the bracket and on the front seat trim until it clicks into place
Bolt
- 3.5 Nm
Adapter
- For the manual seat height adjustment lever
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING, SEAT HEIGHT ADJUSTMENT HANDLE .
Front Cover
- For the seat rail
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
- Slide on carefully until it clicks into place
- Quantity: 2
Seat Trim in Front
- For versions with seat depth adjuster
- Removing and Installing. Refer to FRONT SEAT TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Expanding Clip
Tunnel Side Seat Side Trim
- Removing and Installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
Rear Cover
- For the seat rail
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
- Slide on carefully until it clicks into place
- Quantity: 2
Expanding Clip
Center Cover
- For the seat rail
- Removing and Installing. Refer to CENTER SEAT RAIL COVER, REMOVING AND INSTALLING .
Expanding Clip
Seat Side Trim on Side Sill
- For the power adjustable seat
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
- Press on the bracket and on the front seat trim until it clicks into place
Hand Wheel
- For the manual backrest adjustment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING .
- Press on until it engages audibly.
Expanding Clip
Lever
- For the manual seat height adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING, SEAT HEIGHT ADJUSTMENT HANDLE .
- Check before pressing on, check if the spring -16- is inserted in the shaft for seat height adjustment
Spring
- For the manual seat height adjustment lever
