Overview - Rear Seat Backrest, 2-Person Rear Seat

WARNING: This page is about a different variant/trim than selected.

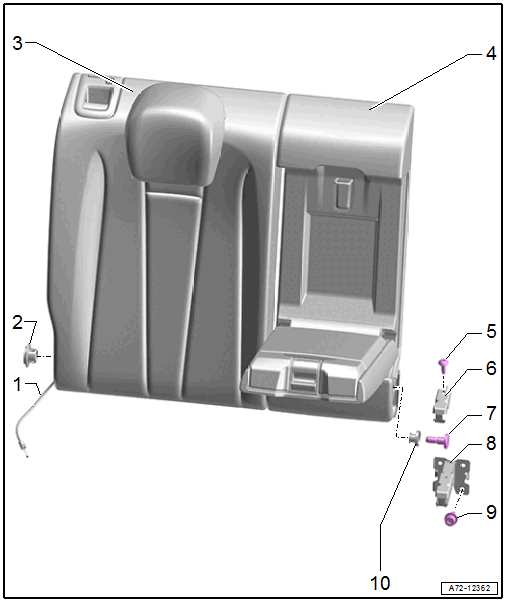

Fig 1: Exploded View Of Rear Seat Backrest, 2-Person Rear Seat

Courtesy of AUDI OF AMERICA, LLC

Release Cable
- For remote backrest release
Outer Bearing Sleeve
- Removing and Installing. Refer to OUTER BEARING SLEEVE, REMOVING AND INSTALLING .
- Place in the backrest frame and push until stop.
Right Rear Seat Backrest
- Removing and Installing. Refer to OUTER REAR SEAT BACKREST, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
Center Rear Seat Backrest
- Removing and Installing. Refer to CENTER REAR SEAT BACKREST, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
Bolt
- 8 Nm
Securing Bracket
- For the center bracket
- Removing and Installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
Inner Mounting Pin
- 15 Nm
- Removing and Installing. Refer to INNER MOUNTING PIN, REMOVING AND INSTALLING .
Center Support
- Removing and Installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 4
Inner Bearing Sleeve
