Overview - Driver Side Instrument Panel Cover

WARNING: This page is about a different variant/trim than selected.

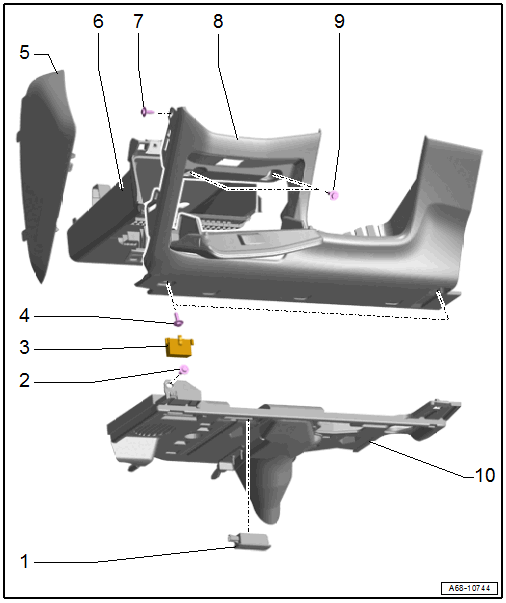

Fig 1: Exploded View Of Driver Side Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

Left Front Footwell Lamp -K268-
- Equipped on some models
- Component Location Overview. Refer to OVERVIEW - INSTRUMENT PANEL LAMPS .
Bolt
- 3 Nm
Diagnostic Connection -U31-
Bolt
- 3 Nm
- Quantity: 2
Side Cover
- For the instrument panel
- Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
Storage Compartment
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Driver Side Instrument Panel Cover
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Equipped on some models
- Quantity: 2
Driver Side Lower Cover
- For the instrument panel
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
