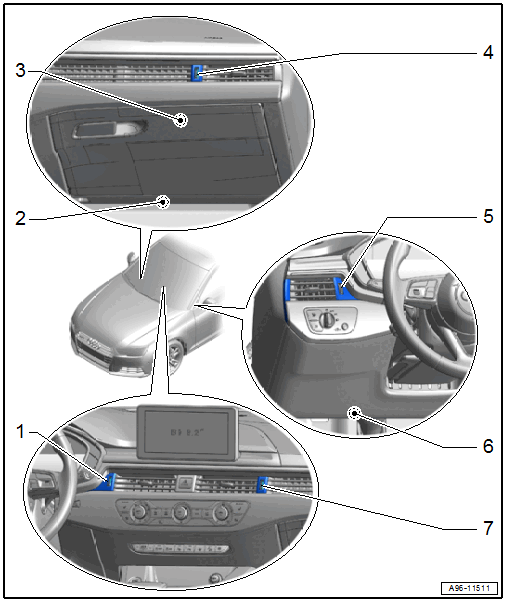

Overview - Instrument Panel Lamps
WARNING: This page is about a different variant/trim than selected.
- Center Instrument Panel Vent Illumination Bulb -L68- Left
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Left Front Footwell Lamp -K268-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- 12 V, 5 W
- Removing and installing. Refer to BULB FOR Glove Compartment Lamp -W6-, REPLACING .
- Right Instrument Panel Vent Illumination Bulb -L69-
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Left Instrument Panel Vent Illumination Bulb -L67-
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Right Front Footwell Lamp -K269-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68- Right
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
