Hinge Arm Trim Panels, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the center armrest upper section. Refer to CENTER ARMREST UPPER SECTION, REMOVING AND INSTALLING .

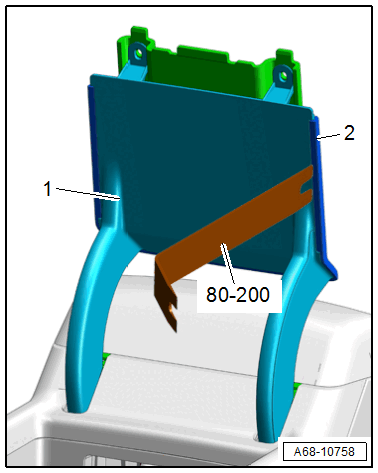

-- Unclip the rear trim panel -2- at the sides from the front trim panel -1- using the :80-200 .
-- Separate the hinge arm trim panels from each other, disengage them at the center armrest support and remove them.
