Center Armrest Upper Section, Removing And Installing

Special tools and workshop equipment required

• Pry Lever :80-200

Removal, Version 1

-- Fold the center armrest up.

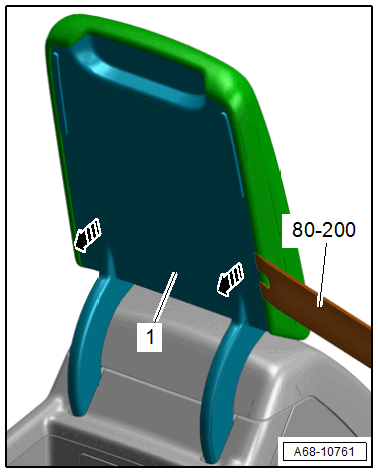

-- Starting at the back, unclip the cover -1- from the center armrest in direction of -arrows- using the :80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cover completely and remove it.

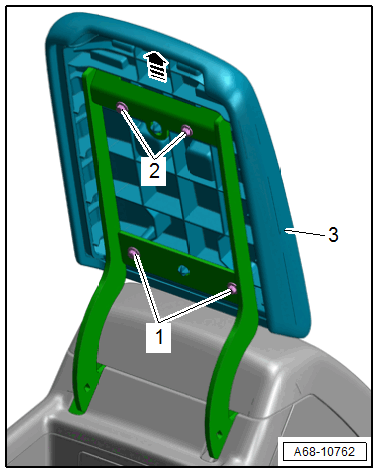

-- Remove the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the center armrest upper section -3- in direction of -arrow- and remove it.

Removal, Version 2

Courtesy of AUDI OF AMERICA, LLC

-- Fold the center armrest up.

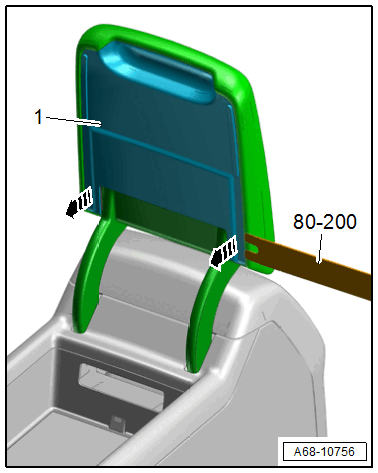

-- Starting at the back, unclip the cover -1- from the center armrest in direction of -arrows- using the :80-200  .

-- Unclip the cover completely and remove it.

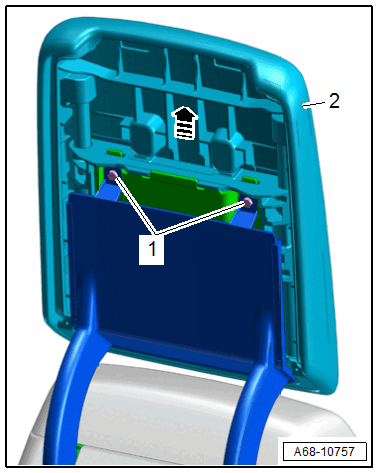

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the center armrest upper section -2- in direction of -arrow- and remove it.

Installing

Install in reverse order of removal.
