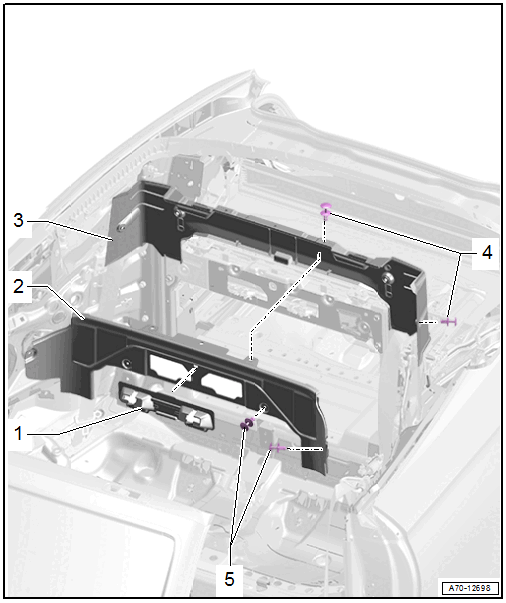

Overview - Rear Panel Trim Panel
WARNING: This page is about a different variant/trim than selected.
- Backrest Release Trim
- Clip into the rear panel
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .
- Press until it engages completely
- Rear Panel Front Trim Panel
- Removing and Installing. Refer to REAR PANEL FRONT TRIM PANEL, REMOVING AND INSTALLING .
- Rear Panel Rear Trim Panel
- Removing and Installing. Refer to REAR PANEL REAR TRIM PANEL, REMOVING AND INSTALLING .
- Expanding Clip
- Remove using the Pliers: T40172C
- Quantity: 6
- Expanding Clip
- Remove using the Pliers: T40172C
- Quantity: 7
