Speaker Trim In Door Trim Panels, Removing And Installing

Special tools and workshop equipment required

• Pry Lever: 80-200

Bass Speaker Trim in Front Door, Removing

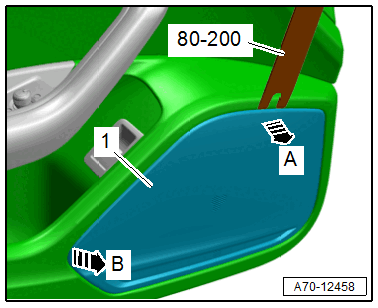

Fig 1: Front Bass Speaker Trim

Courtesy of AUDI OF AMERICA, LLC

-- Speaker trim with ambient lighting: remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- If installed, remove the lamp for the ambient lighting in the rear on the speaker trim to do so release the catches and remove the lamp from the fiber-optic cable.

-- Carefully pry out the speaker trim -1- along the door trim panel seam using the : 80-200  in direction of -arrow A-.

-- To do so release the catches on the door trim panel.

-- Disengage the speaker trim at the rear from the door trim panel in direction of -arrow B- and remove.

Bass Speaker Trim in Rear Door, Removing

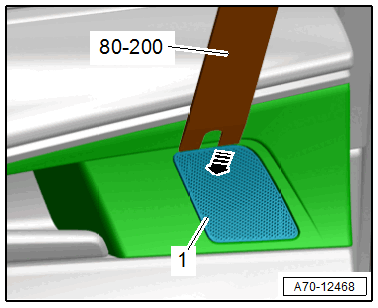

Fig 2: Rear Bass Speaker Trim

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the speaker trim -1- along the door trim panel seam using the : 80-200  -arrow- and remove it.

Treble Speaker Trim in Rear Door, Removing

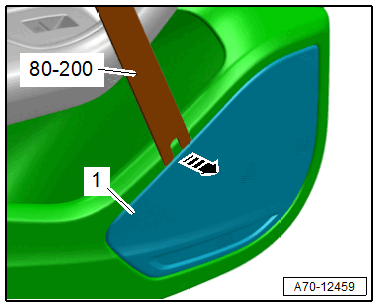

Fig 3: Rear Treble Speaker Trim

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry the speaker trim -1- out of the door trim panel using the : 80-200  in direction of -arrow- and remove it.

Installing

Install in reverse order of removal.

Installation Instructions: Tightening Specifications, Replacing Body Parts. Refer to OVERVIEW - FRONT DOOR TRIM PANEL  and OVERVIEW - REAR DOOR TRIM PANEL .
