Rear Lid Lower Trim Panel, Removing And Installing, A5 SPORTBACK: Removing

-- Unclip the rear lid latch trim panel -1- using the : T40233  in the direction of the -arrow-.

Fig 1: Identifying Rear Lid Lock Trim -1- In Direction Of -Arrow-, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear luggage compartment cover.

-- If installed, remove the rear lid closing button. Refer to CONTROLS .

-- Remove the rear lid lamp. Refer to OVERVIEW - LUGGAGE COMPARTMENT LAMPS .

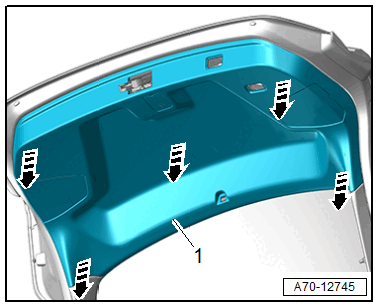

-- Starting from the top, unclip the trim panel -1- from the rear lid in direction of -arrows- using the : T40233  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the rest of the trim panel clips and remove the trim panel.
