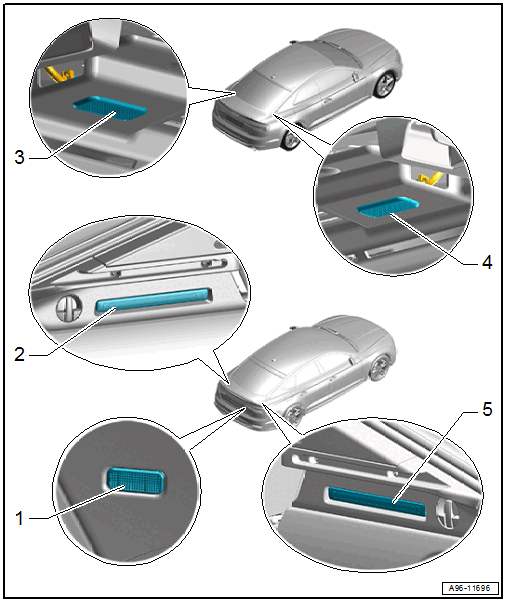

Overview - Luggage Compartment Lamps

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Rear Lid Lamp -W51- - Sportback
- Removing and Installing. Refer to Rear Lid Lamp -W51-, REMOVING AND INSTALLING, SPORTBACK .
Left Luggage Compartment Lamp -W18- - Sportback
- In the left luggage compartment side trim panel
- Removing and Installing. Refer to LEFT/RIGHT LUGGAGE COMPARTMENT LAMP -W18- / -W35-, REMOVING AND INSTALLING, SPORTBACK .
Left Luggage Compartment Lamp -W18-, Coupe, Cabriolet
- In the left luggage compartment side trim panel
- 12 V, 5 W
- Removing and Installing. Refer to LEFT/RIGHT LUGGAGE COMPARTMENT LAMP -W18- / -W35-, REMOVING AND INSTALLING, COUPE, CABRIOLET .
Right Luggage Compartment Lamp -W35-, Coupe, Cabriolet
- In the right luggage compartment side trim panel
- Removing and Installing. Refer to LEFT/RIGHT LUGGAGE COMPARTMENT LAMP -W18- / -W35-, REMOVING AND INSTALLING, COUPE, CABRIOLET .
Right Luggage Compartment Lamp -W35- - Sportback
- In the right luggage compartment side trim panel
- Removing and Installing. Refer to LEFT/RIGHT LUGGAGE COMPARTMENT LAMP -W18- / -W35-, REMOVING AND INSTALLING, SPORTBACK .
