Overview - Fender Repair Kit, RS 4/RS 5

WARNING: This page is about a different variant/trim than selected.

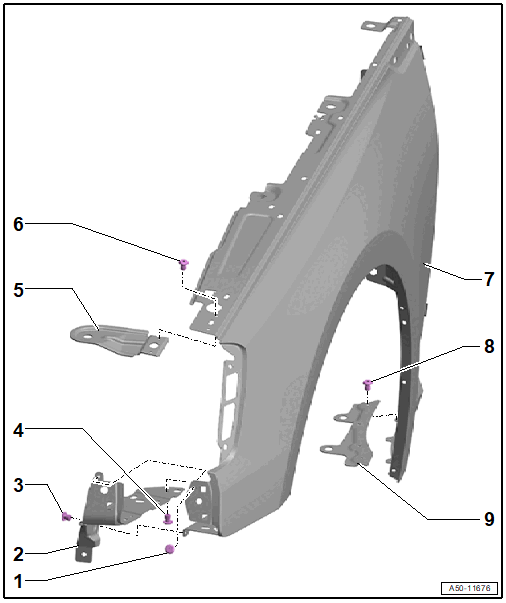

Fig 1: Exploded View Of Fender Repair Kit, RS 4/RS 5
GWWA50-11676Courtesy of AUDI OF AMERICA, LLC
  1. Pop Rivet
  2. Reinforcement
  3. Pop Rivet
    • Quantity: 2
  4. Pop Rivet
    • Quantity: 3
  5. Bracket
  6. Pop Rivet
    • Quantity: 2
  7. Fender
  8. Pop Rivet
    • Quantity: 4
  9. Adapter
