Fender, Preparing for Installation

• The fender can only be ordered in individual components and must be prepared for installation as follows.

Special tools and workshop equipment required

• Pop Rivet Nut Pliers: VAS5072A
• Drill
• Pop rivets. Refer to the Parts Information.

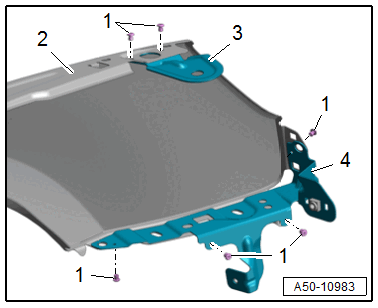

A4/A5:

Courtesy of AUDI OF AMERICA, LLC

-- Use pop rivets -1- to fasten the bracket -3- and reinforcement -4- to the fender -2-.

• The brackets must be behind the fender edge.

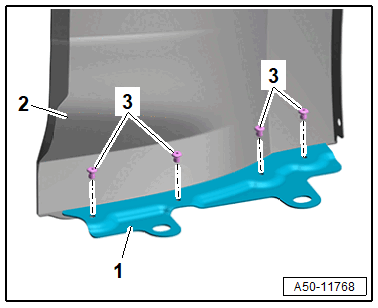

RS 4 / RS 5:

Courtesy of AUDI OF AMERICA, LLC

-- Rivet the adapter -1- on the fender -2- with pop rivets -3-.

• The adapter must be behind the fender edge.
