Overview - Fender Repair Kit, A4/A5

WARNING: This page is about a different variant/trim than selected.

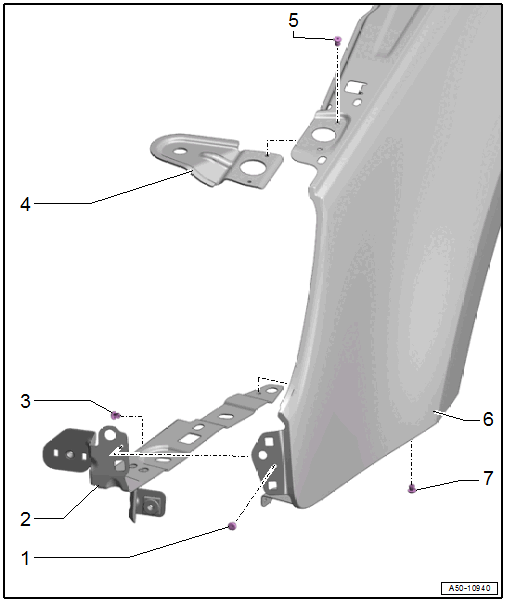

Fig 1: Exploded View Of Front Fender Repair Kit
GWWA50-10940Courtesy of AUDI OF AMERICA, LLC
  1. Pop Rivet
  2. Reinforcement
  3. Pop Rivet
    • Quantity: 2
  4. Bracket
  5. Pop Rivet
    • Quantity: 2
  6. Fender
  7. Pop Rivet
