Fender, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- If required, remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

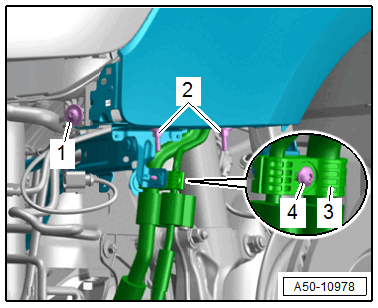

-- Remove the bolts -1 and 4- and the double bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the bracket -3- for the refrigerant lines.

-- Remove the front fender cover. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING .

-- Remove the rear cover for the fender. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .

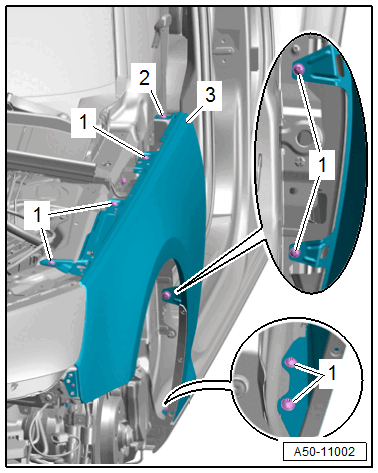

-- Remove the bolts -1- and the double bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

-- Vehicles with pedestrian protection: free up the connector for the pedestrian protection trigger OVERVIEW - HOOD - List Item: Pedestrian Protection Trigger .

-- Remove the fender -3-.
