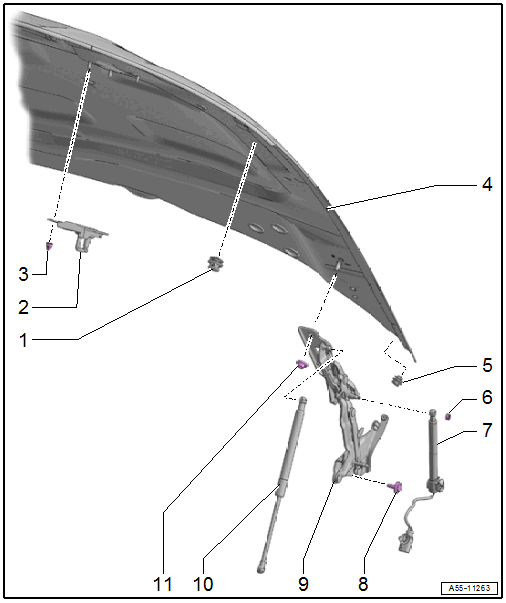

Overview - Hood
WARNING: This page is about a different variant/trim than selected.
- Overview - Insulation and Impact Guard on Hood. Refer to OVERVIEW - INSULATION AND IMPACT GUARD ON HOOD .
- Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Striker
- There are different versions.
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
- Nut
- 9 Nm
- Quantity: 3
- Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Removed pedestrian protection: reset the hinge. Refer to HINGE, RESETTING
- Adjusting. Refer to HOOD, ADJUSTING .
- Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Clip
- Pedestrian Protection Trigger
- Market-specific version
- Removing and Installing. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Bolt
- 21 Nm
- Quantity: 2
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Nut
- 21 Nm
- Quantity: 2
