Overview - Relay Panel, Fuse Panel And E-Boxes, Luggage Compartment, Coupe, SPORTBACK

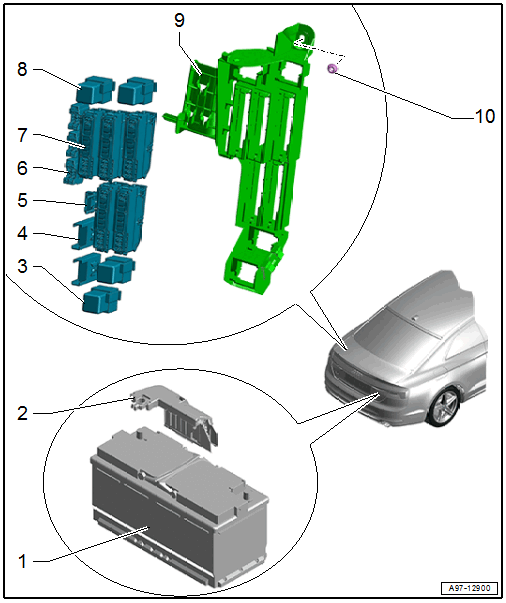

Fig 1: Relay Panel, Fuse Panel And E-Boxes, Luggage Compartment, Coupe, Sportback

Courtesy of AUDI OF AMERICA, LLC

1. Battery
2. Main Fuse Panel
   • Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
3. Relay Mount
   • Allocation. Refer to the appropriate Wiring Diagram.
4. Auxiliary Fuse Panel
   • Allocation. Refer to the appropriate Wiring Diagram.
5. Auxiliary Fuse Panel
   • Allocation. Refer to the appropriate Wiring Diagram.
6. Fuse Panel
   • Allocation. Refer to the appropriate Wiring Diagram.
7. Fuse Panel
   • Allocation. Refer to the appropriate Wiring Diagram.
8. Relay Mount
   • Allocation. Refer to the appropriate Wiring Diagram.
9. Relay and Fuse Panel 2 -SR2-
   • Removing and installing. Refer to Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING, COUPE, SPORTBACK .
10. Nut
    • 3 Nm
