Overview - Relay Panel, Fuse Panel And E-Boxes, Luggage Compartment, Cabriolet

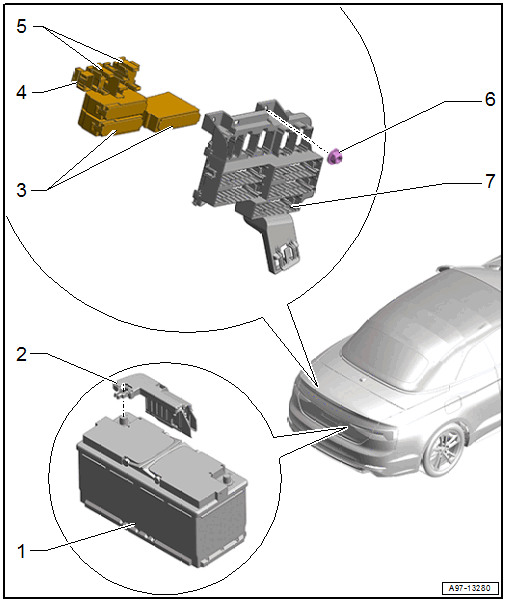

Fig 1: Exploded View Of Relay Panel, Fuse Panel And E-Boxes, Luggage Compartment, Cabriolet

Courtesy of AUDI OF AMERICA, LLC

1. Battery
2. Main Fuse Panel
   • Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
3. Fuse Panel
   • Allocation. Refer to the appropriate Wiring Diagram.
4. Auxiliary Fuse Panel
   • Allocation. Refer to the appropriate Wiring Diagram.
5. Relay Mount
   • Allocation. Refer to the appropriate Wiring Diagram.
6. Nut
   • 3 Nm
   • Quantity: 2
7. Relay and Fuse Panel 2 -SR2-
   • Removing and Installing. Refer to Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING, CABRIOLET .
