Exhaust Pipes/Mufflers, Disconnecting
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Chain Pipe Cutter:VAS6254

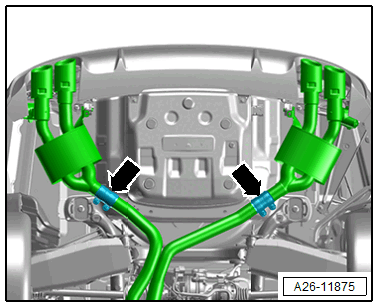

- A separating point has been provided in the connecting pipe for individual replacement of the center or rear muffler.
- The separating point is marked by an indentation around the circumference of the exhaust pipe.
- Shown on a 3.0L engine.
Procedure
-- Separate the exhaust pipes at a right angle at the separating points -arrow- using a :VAS6254 .
-- Position the clamping sleeves -arrows- in the center of the separation cut (refer to Figure) and tighten the nuts.
-- Install the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Tightening Specifications
- Refer to OVERVIEW - MUFFLER
