Crankshaft, Removing And Installing: Removing

• Engine secured on the engine and transmission holder. Refer to ENGINE, SECURING TO ENGINE AND TRANSMISSION HOLDER .

-- Remove the pistons. Refer to PISTONS, REMOVING AND INSTALLING .

-- Remove the belt pulley side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .

-- Remove the lower timing chain cover if it is not already removed. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

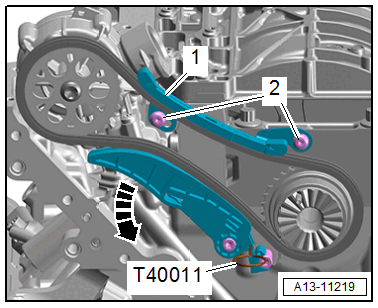

-- Press the tensioning rail in direction of -arrow- and secure it with a :T40011  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and remove the guide rail -1-.

-- Remove the oil pump with the chain sprocket. Refer to OIL PUMP, REMOVING AND INSTALLING .

-- Lock the gear backlash on the gear to do so insert the :T40362  all the way in the gear and turn 180° clockwise -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and -1 through 8-.

Fig 1: Bearing Cap - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

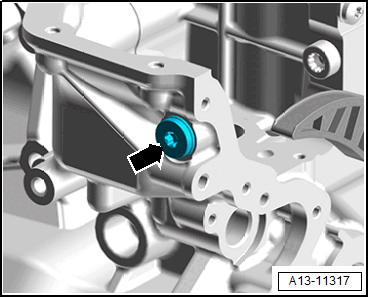

-- Remove the left front plug -arrow-.

Courtesy of AUDI OF AMERICA, LLC

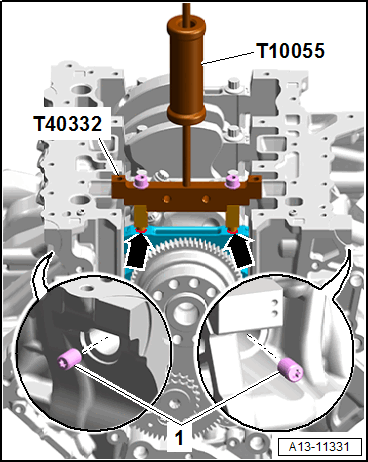

-- Position the prepared :T40332  on the affected bearing cap down to the grooves -arrows-, and secure it by turning the threaded pin -1- using the :T10248  on the left and right side until it stops.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the :T10055  on the :T40332  , and remove the bearing cap.

-- Remove the remaining bearing caps and remove the crankshaft.
