Part I
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Part II. Refer to Part II .
Part III. Refer to Part III .

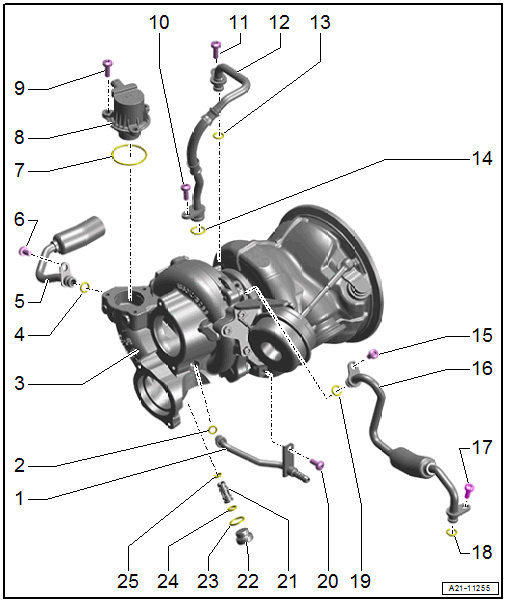

- Connecting Tube
- For the EVAP system
- O-Ring
- Replace after removing.
- Turbocharger
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing.
- Coat with coolant
- Coolant Supply Line
- Bolt
- 9 Nm
- O-Ring
- Replace after removing.
- Recirculation Valve, Bank 1 -N625-
- Removing and Installing. Refer to RECIRCULATION VALVE, REMOVING AND INSTALLING, 3.0L ENGINE .
- Bolt
- 9 Nm
- Bolt
- Tightening specification. Refer to -item 9- OVERVIEW - OIL FILTER - Bolt
- Bolt
- 9 Nm
- Oil Supply Line
- O-Ring
- Replace after removing.
- Coat with engine oil
- O-Ring
- Replace after removing.
- Coat with engine oil
- Bolt
- 9 Nm
- Coolant Return Line
- Bolt
- 9 Nm
- O-Ring
- Replace after removing.
- Coat with coolant
- O-Ring
- Replace after removing.
- Coat with coolant
- Bolt
- 9 Nm
- Venturi Injector
- Press in until it locks into place
- Plug
- 25 Nm
- Seal
- Replace after removing.
- O-Ring
- Replace after removing.
- Red
- O-Ring
- Replace after removing.
- Green
