Intake Manifold, Removing And Installing, 3.0L Engine, AUDI A4/A5/A6/A7/Q5

WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Socket T30 :T10405

NOTE:

The crankcase ventilation hose cannot be separated from the intake manifold. Note the information -item 11-.

Removing

-- Pay attention to the repair information. Refer to REPAIR INFORMATION .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the lock carrier cover. Refer to Front Bumper .

Audi A4/A5:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the air guide -2-.

Audi A6/A7:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the air duct.

Audi Q5:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

All:

Courtesy of AUDI OF AMERICA, LLC

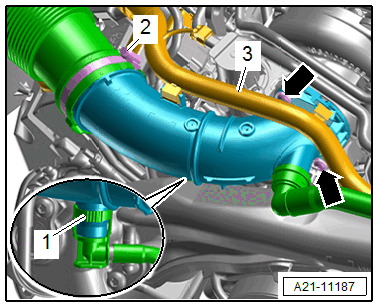

-- Loosen the hose clamp -2- and remove the air duct pipe.

-- Free up the wiring harness -3-.

-- Remove the bolts -arrows-.

-- Remove the intake manifold and crankcase ventilation hose -1- by pressing the release buttons on both sides.

-- If installed, remove the hose -1- for the EVAP system by pushing the release buttons on both sides.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crankcase ventilation hose -arrows- by pressing the release buttons on both sides.

-- Remove the intake manifold.

Installing

Install in reverse order of removal and note the following:

Check the O-rings for damage. Refer to Figure.

Tightening Specifications

Refer to OVERVIEW - CHARGE AIR SYSTEM, 3.0L ENGINE-SIDE, VERSION 1
Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS
