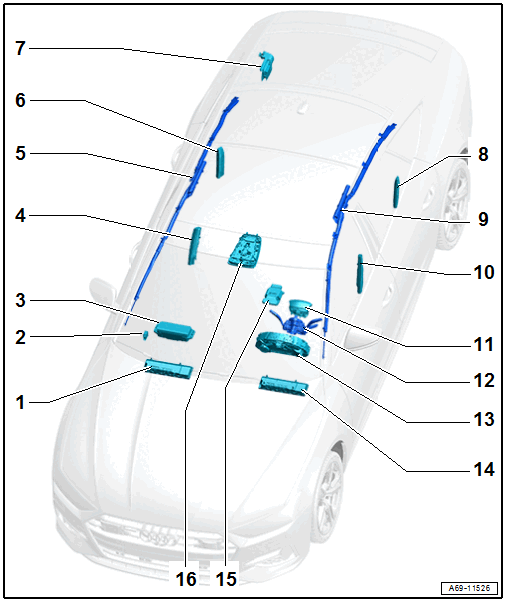

Component Location Overview - Airbag System
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Knee Airbag
- With Front Passenger Knee Airbag Igniter -N296-
- North American market-specific
- Overview. Refer to OVERVIEW - KNEE AIRBAG, FRONT PASSENGER SIDE .
- Front Passenger Airbag Deactivation Key Switch -E224-
- Rest of World equipment/market version:
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
- Front Passenger Airbag Unit -NX3-
- with
- Front Passenger Airbag Igniter 1 -N131-
- North America market versions: Front Passenger Airbag Igniter 2 -N132-
- Front Passenger Airbag Release Valve Igniter -N491-
- Rest of World equipment/versions: locking and activation possible via the Front Passenger Airbag Deactivation Key Switch -E224-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- with
- Thorax Airbag on Front Passenger Side
- With Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Front Passenger Head Curtain Airbag
- With Front Passenger Head Curtain Airbag Igniter -N252-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Rear Thorax Airbag on Front Passenger Side
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Overview. Refer to OVERVIEW - REAR THORAX AIRBAG .
- Battery Interrupt Igniter -N253-
- Overview. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
- Rear Thorax Airbag on Driver Side
- With Driver Side Rear Thorax Airbag Igniter -N201-
- Overview. Refer to OVERVIEW - REAR THORAX AIRBAG .
- Driver Head Curtain Airbag
- With Driver Head Curtain Airbag Igniter -N251-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Thorax Airbag on Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Driver Side Airbag
- with
- Driver Airbag Igniter -N95-
- Driver Airbag Release Valve Igniter -N490-
- Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
- with
- Steering Column Electronics Control Module -J527-
- With Spiral Spring -F350-
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
- Airbag Indicator Lamp -K75-
- Integrated into the instrument cluster. Cannot be replaced separately if faulty.
- Replace the instrument cluster. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Driver Side Knee Airbag
- With Driver Knee Airbag Igniter -N295-
- North American market-specific
- Overview. Refer to OVERVIEW - KNEE AIRBAG, FRONT PASSENGER SIDE .
- Airbag Control Module -J234-
- Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the Front Roof Module -WX3-. Cannot be replaced separately if faulty.
- Replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
