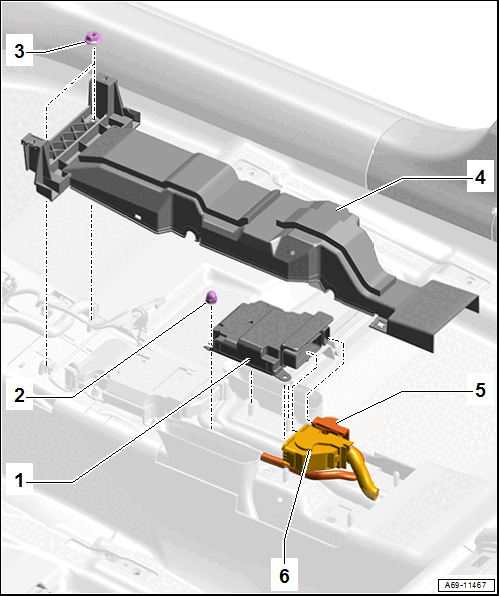

Overview - Airbag Control Module
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
- Airbag Control Module -J234-
- Removing and installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
- The control module is grounded via the housing with the body.
- Nut
- 9 Nm
- The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
- Quantity: 4
- Nut
- 4 Nm
- Quantity: 2
- Cover
- Connector
- Connector
