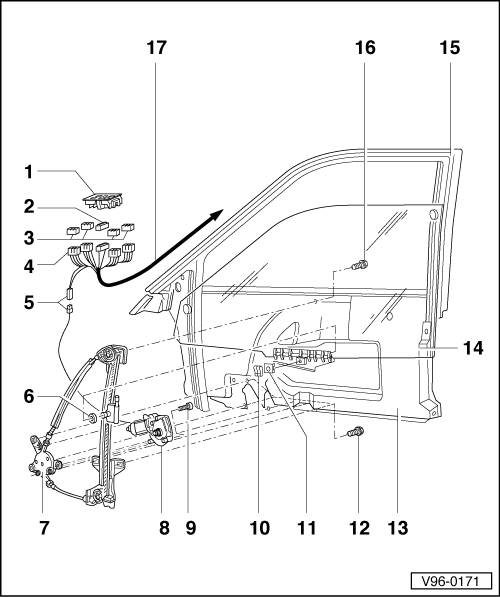

Front Power Windows Assembly
NOTE:
Door component disassembly Description and Operation
Refer to appropriate wiring diagram for electrical repairs
Individual mechanical portions of window regulator mechanism are available as replacement parts
After removal and installation of door component carrier or window regulator door glass height must be adjusted
- Window switch console
- Removing and installing WINDOW SWITCH CONSOLE
- Safety switch
- Removing and installing WINDOW SAFETY SWITCH
- Window switches
- Left front window switch -E40-
- Left rear window switch -E53-
- Right rear window switch -E55-
- Right front window switch -E41-
- Removing and installing WINDOW SAFETY SWITCH
- Terminal connectors, window switches
- Disassembling connector for right side window switch WINDOW REGULATOR SWITCH, RIGHT DOOR, DISCONNECTING
- Terminal connector, left front window motor
- Not directly connected to window switch
- Connected with 2-point terminal from wiring harness to window regulator
- Washer
- Location/installation WINDOW REGULATOR
- Window regulator, assembly
- Removing and installing WINDOW REGULATOR
- Adjusting door glass height DOOR GLASS HEIGHT, ADJUSTING
- Window regulator motor
- Removing and installing WINDOW REGULATOR MOTOR
- Torx screw
- Tightening torque 4.5 Nm (40 in lb)
- Locking clip, glass
- Location and removing WINDOW REGULATOR
- Washer
- Location and removing WINDOW REGULATOR
- Screw
- Tightening torque: 10 Nm (7ft lb)
- Door component carrier
- Mounting points WINDOW REGULATOR
- Glass, left front
- Guide, door glass
- Screw
- Tightening torque: 10 Nm (7ft lb)
- Wiring harness
- Refer to appropriate wiring diagram for troubleshooting
