Door Glass Height, Adjusting

NOTE:

After removing and installing door component carrier or regulator, the upper door glass height must be adjusted.

-- Fully raise window glass.

-- Close door.

Seal inner lip -1- must lie against top edge of glass -2- with pretension -a-

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 0.5 mm (approx. 1/64 in.)

If glass does not contact seal -1- as shown or pinches seal:

Courtesy of AUDI OF AMERICA, LLC

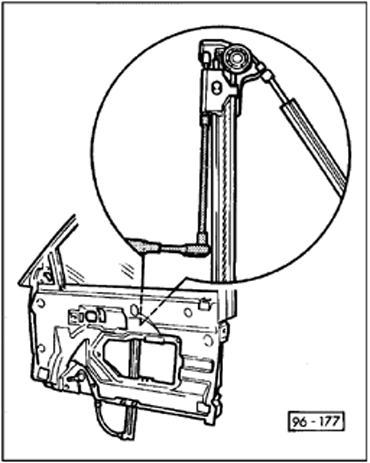

-- Correct adjustment with stop screw, as shown.
