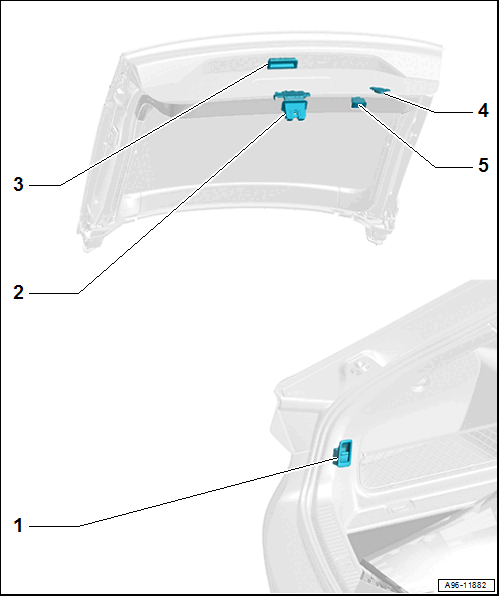

Component Location Overview - Controls In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Power Pivoting Trailer Hitch Button -E474-
   • Removing and Installing. Refer to Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
2. Rear Lid Contact Switch
   • Integrated in the rear lid latch
   • Cannot be replaced separately
   • Replace the rear lid latch if it is faulty. Refer to LATCH, REMOVING AND INSTALLING .
3. Release Button In Rear Lid Handle -E234-
   • Removing and Installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING .
4. Rear Lid Warning Buzzer -H32-
   • The buzzer is activated by closing the rear lid using the rear lid remote release button in the front door
   • Removing and Installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
5. Rear Lid Control Head -EX58-
   • With the following integrated components
     • Rear Lid Lock Button in Luggage Compartment -E406-
     • With Locking Mechanism Button in the Rear Lid -E806-
   • Removing and Installing. Refer to Rear Lid Control Head -EX58-, REMOVING AND INSTALLING .

Anti-Theft Protection to Release Button In Rear Lid Handle E234 - Tightening Specification

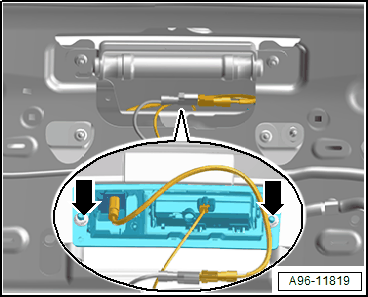

Fig 1: Anti-Theft Protection to Release Button In Rear Lid Handle -E234-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 8 Nm.
