Overview - Cylinder Head

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2023 Audi SQ8, 2023 Audi RS Q8, 2022 Audi SQ8, 2022 Audi RS Q8, and 2021 Audi SQ8. However, it is still accessible from the selected car via links, so may be relevant.

All components are described under: OVERVIEW - CYLINDER HEAD .

Wiring Duct on Front Engine, Cylinder Bank 1 (Right) - Tightening Specification

Fig 1: Component Location: on the Front of the Engine, Cylinder Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1- to 9 Nm.

Wiring Duct on Front Engine, Cylinder Bank 2 (Left) - Tightening Specification

Fig 2: Component Location: on the Front of the Engine, Cylinder Bank 2 (Left)

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 9 Nm.

Wiring Harness Bracket on Cylinder Head Bank 2 (Left) - Tightening Specification

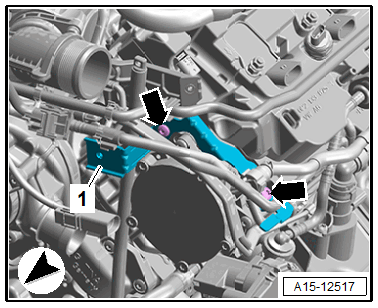

Fig 3: Wiring Harness Bracket on Cylinder Head Bank 2 (Left) - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 9 Nm.
